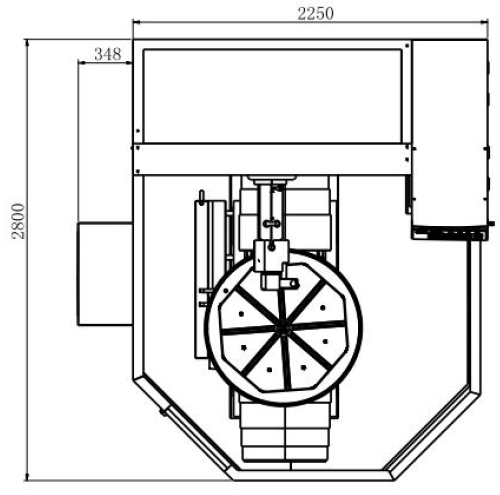

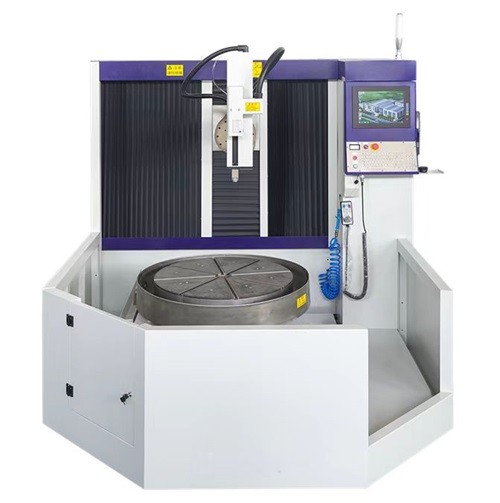

7 Axis CNC Drilling EDM machine

7 Axis CNC Drilling EDM machine

I. Function of CNC Drilling EDM machine

 1.1 The machine is used for drilling holes on a solid surface, can process die steel, stainless steel, iron, aluminum, copper, high-temperature alloy, titanium alloy, nickel-based alloy, cemented carbide and other conductive metal materials, it is suitable for machining small and deep holes such as plane, special-shaped, spherical and so on. The diameter of the hole is φ0.2-φ3.0 mm.

1.2 This machine optimizes the design of the blade air film hole in the high frequency power supply part, realizes the ultra-high frequency nanosecond pulse output, obviously improves the processing index of the finished hole.

II. The machine characteristics:

 1.    T-type split mechanical structure

2.X/Y/Z axis precision screw guide,

3.Precision CNC turntable (c-axis)

4.Absolute AC servo control

5.Windows platform 7-axis CNC system

6. 2D/3D model programming,

7.Blind hole precise deep processing,

8. Automatic center-dividing and locating function,

9. automatic detection function of penetration,

10.Multi-function remote control electronic manual box

11.400L stainless steel water treatment system,

12. Special precision high-speed rotating head

13.* ATC tool changer installation function

14.* Guides station installation function

III. Advantages of the machine

1. It is composed of main machine body, CNC pulse power control cabinet, deionized water treatment system, etc.

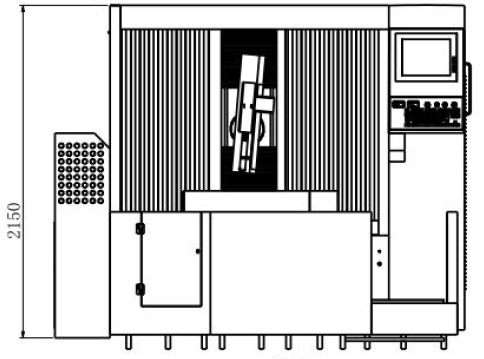

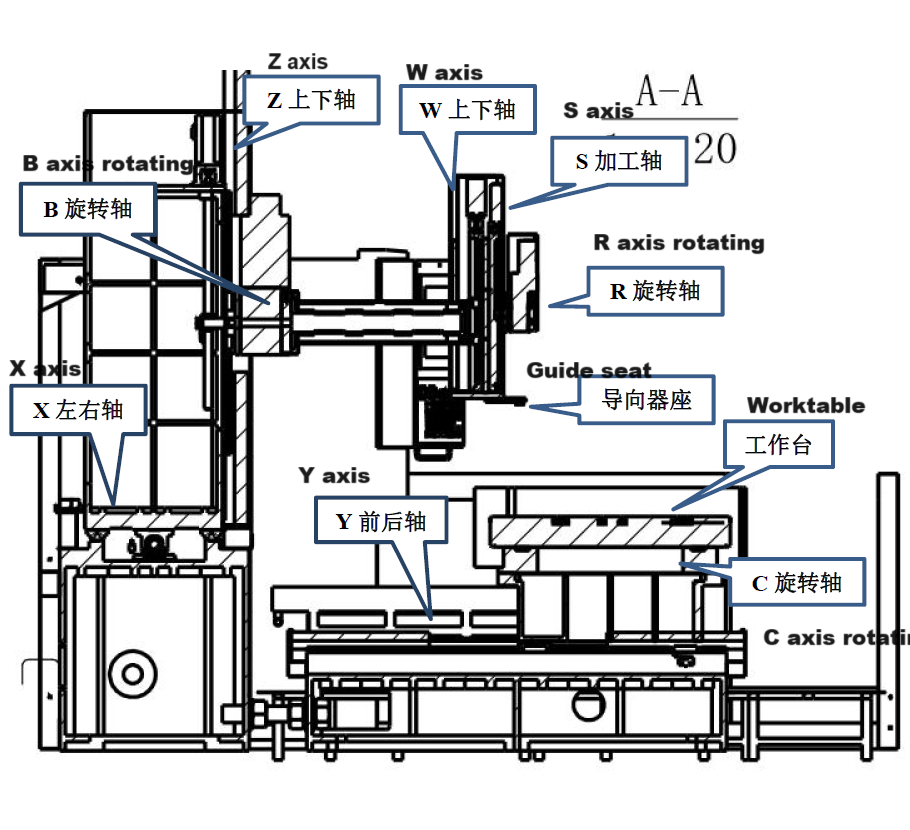

2. Main machine: composed of bed, column, X axis, Y axis, Z axis, S axis, W axis, B axis, C axis

3.  CNC pulse power control cabinet: It is composed of industrial control computer, CNC system, touch screen, servo motors drive, machine tool electrical appliances, high-efficiency discharge pulse power supply, rocker arm waterproof and antipollution stainless steel keyboard control table, multi-function remote control hand box, etc.

4. Deionized water treatment systems: the 400 L stainless steel water tank, filter system, to ion system, conductivity detection system, high pressure water pump, etc.

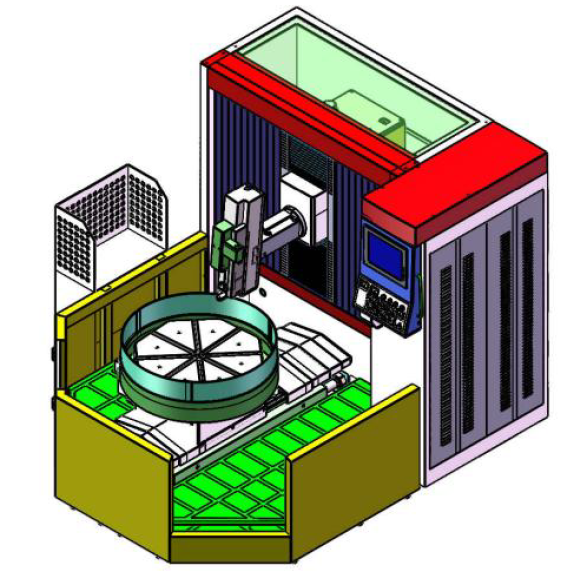

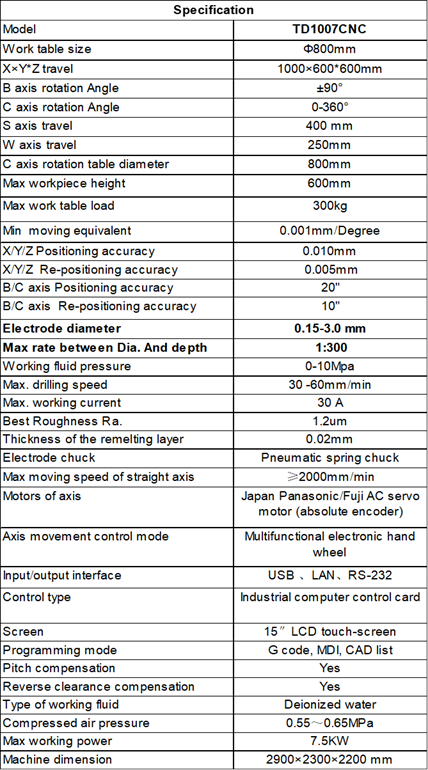

IV. Machine specification
