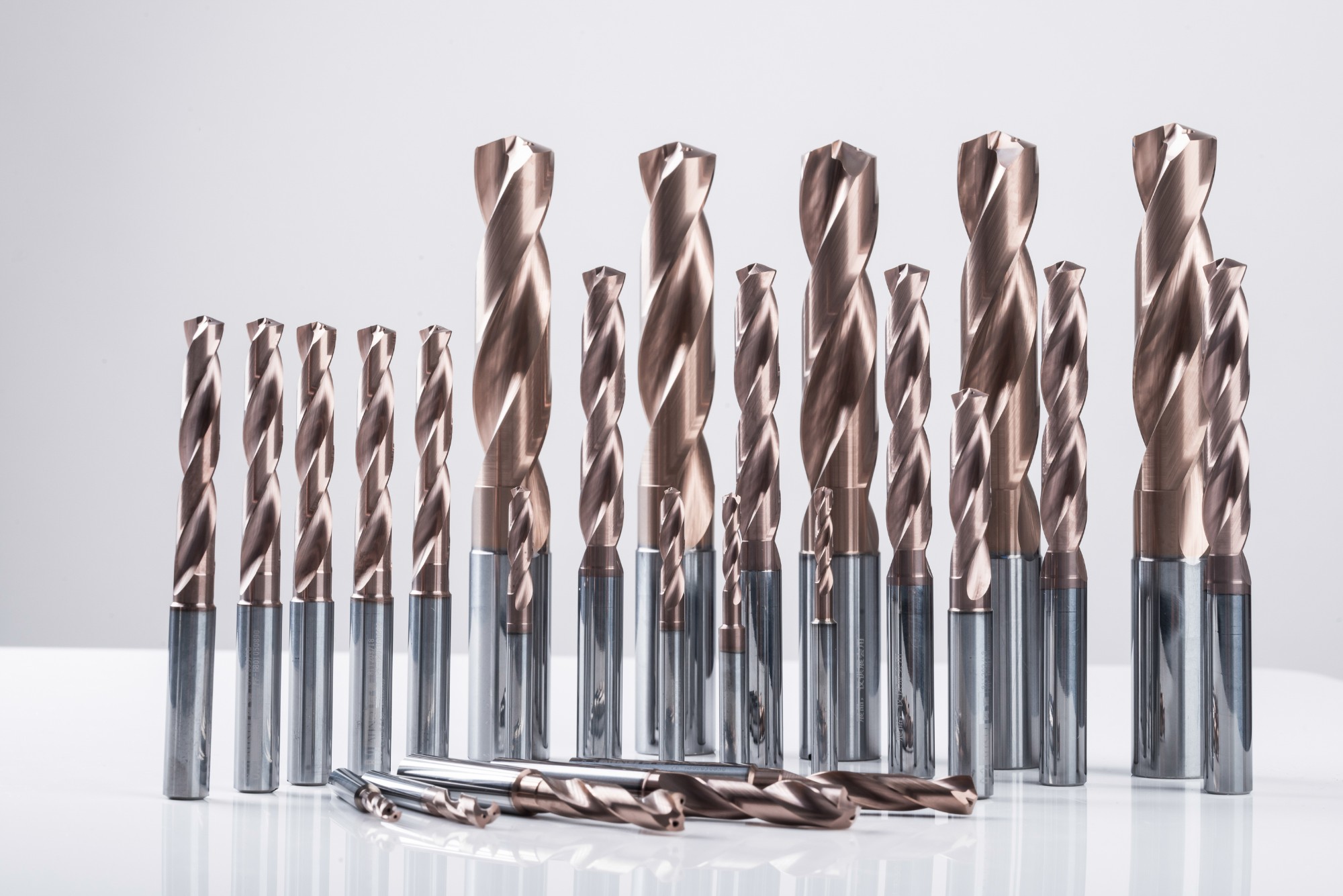

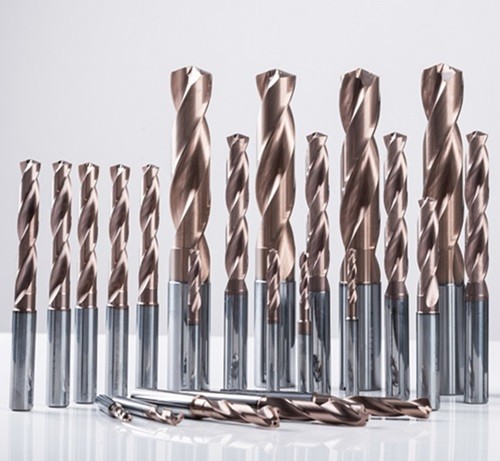

Coated Carbide Drills (3*D)

Coated Carbide Drills are Suitable for drilling structure steel, alloy steel, and stainless steel etc.

EMAIL

Coated Carbide Drills (3*D)



I.                 Advantages:

1. Higher Centering ability;

2. Stable precision size;

3. Better inner hole surface;

4. Suitable for drilling structure steel, alloy steel, and stainless steel etc.



II.               Manufacturing features:

1.Size standard: Subject to DIN6537;

2. Chisel edge adjustment: China;

3.Main edge point angle:140°;

4. Shape of flute: Designed specially, easy for chip remove;

5. Tolerance of cutter diameter: m7;

6.Segment standard: Subject to DIN6535HA h6;

7. Coated layer: Structure: Multi layer; Main ingredients: Si based; Color: Copper; HV:3400; Coefficient of Friction with steel: ˂0.4; Working temperature: 1100°; Thickness: 1.5um-3um



III.      Models:

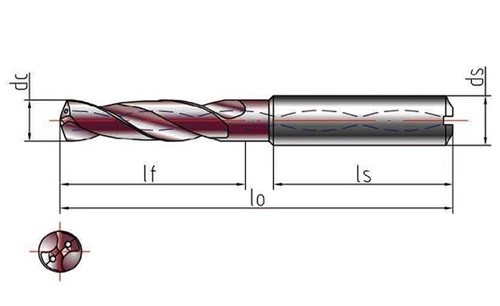

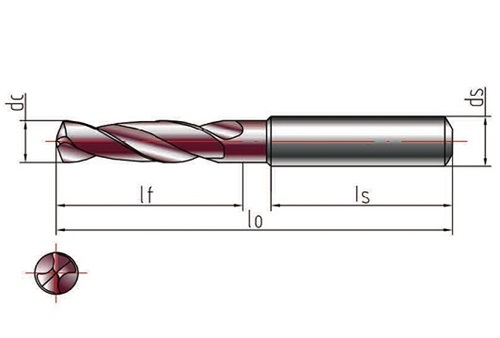

drilling tools sizes.jpg

Item No.

Dia.of cutter(mm)

Length of flute(mm)

Dia. of Segment(mm)

Length of Segment(mm)

Length of Overall(mm)

PF-H800030330

3.30

20.0

6.0

36.0

62.0

PF-H800030350

3.50

20.0

6.0

36.0

62.0

PF-H800030370

3.70

20.0

6.0

36.0

62.0

PF-H800030380

3.80

24.0

6.0

36.0

66.0

PF-H800030390

3.90

24.0

6.0

36.0

66.0

PF-H800030400

4.00

24.0

6.0

36.0

66.0

PF-H800030420

4.20

24.0

6.0

36.0

66.0

PF-H800030425

4.25

24.0

6.0

36.0

66.0

PF-H800030450

4.50

24.0

6.0

36.0

66.0

PF-H800030460

4.60

24.0

6.0

36.0

66.0

PF-H800030490

4.90

28.0

6.0

36.0

66.0

PF-H800030500

5.00

28.0

6.0

36.0

66.0

PF-H800030510

5.10

28.0

6.0

36.0

66.0

PF-H800030530

5.30

28.0

6.0

36.0

66.0

PF-H800030550

5.50

28.0

6.0

36.0

66.0

PF-H800030580

5.80

28.0

6.0

36.0

66.0

PF-H800030590

5.90

28.0

6.0

36.0

66.0

PF-H800030600

6.00

28.0

6.0

36.0

66.0

PF-H800030650

6.50

34.0

8.0

36.0

79.0

PF-H800030670

6.70

34.0

8.0

36.0

79.0

PF-H800030680

6.80

34.0

8.0

36.0

79.0

PF-H800030700

7.00

34.0

8.0

36.0

79.0

PF-H800030730

7.30

41.0

8.0

36.0

79.0

PF-H800030740

7.40

41.0

8.0

36.0

79.0

PF-H800030750

7.50

41.0

8.0

36.0

79.0

PF-H800030780

7.80

41.0

8.0

36.0

79.0

PF-H800030790

7.90

41.0

8.0

36.0

79.0
