Comparing between EDS and Band Saw

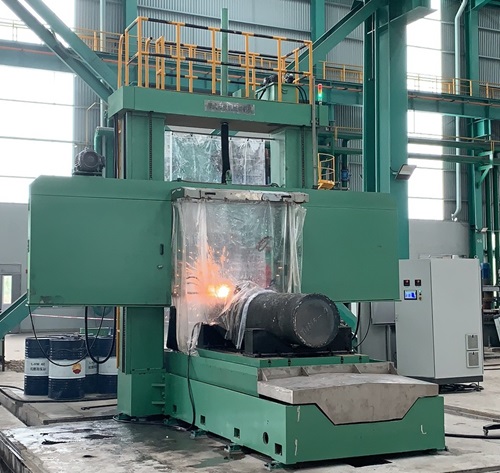

EDS machine S.jpg

Comparing between EDS and Band Saw

Machines

ED Saw

Band saw

Differences

Job material

High temperature heat resistance alloy steel (air plane material)

0

Diameter(mm)

500

0

Cutting tools

Mild steel electrode

Imported saw blade

0

Tool Price(USD/pcs)

$1.20

$515.00

$513.80

Tools (cutting 1job) (Pcs)

1

1

0

Cutting Time(Hours)

2

4

2

Average Cutting gap(mm)

1.8

4.50

2.7

Chip Volume(mm3/pcs)

353250

883125

529875

Chip weight(Kg/pcs)

2.75535

6.888375

4.133025

Material Price(USD/Kg)

$44.00

$44.00

$0.00

 Chip cost(USD/pcs)

$121.24

$303.09

$181.85

Cutting Qty<1Y=8H*250D>

1000

1000

0

Cutting Tool cost /1000pcs

1200

515000

513800

Chip cost/1000pcs(USD)

$121,235.40

$303,088.50

$181,853.10

Total cost/1000pcs(USD)

$122,435.40

$818,088.50

$695,653.10

Delivery time/1000pcs(Days)

250

500

250





Summary:

1. If the quantity of Jobs(Dia500mm) you need to cut every year is :

1000pcs

the total cost(just   tools&chip) you can save with our EDS is:

$695,653.10

2. Benefits

Benefit A. Lower tool cost   (the electrode is cheaper)


Benefit B. Saving material   cost (the cutting gap is smaller)


Benefit C. Higher production   efficiency






Remark:




1. The cutting gap

1.5/2mm

4/5mm


2. tools cost

1.2USD/pcs   or441USD/T

515USD/pcs


3.Job Raw material   cost

44USD/Kg
