ECD (Electro Chemical Deburring) machines are used for removing the burrs in Diesel cylinders, oil flushing Pumps, brake pump, spinning machine workpieces, and cavity type metal jobs, etc.

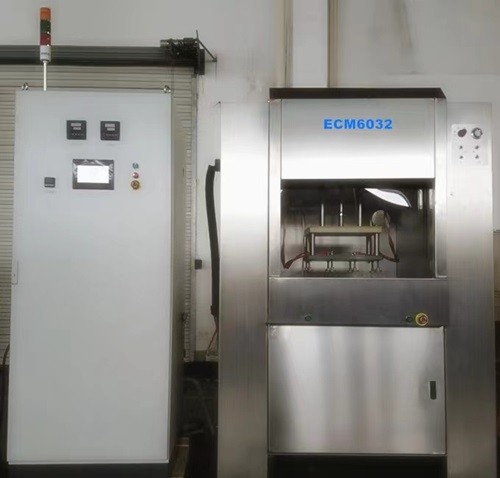

ECD (Electro Chemical Deburring) machine
I. Benefits you can get with ECD (Electro Chemical Deburring) machines:
1. Boosts deburring speed in cavity metal tasks, perfect for mass production.
2. Keeps the metal finish safe and sound.
3. Makes removing tricky inner burrs easy, beating out mechanical methods.
II. Function of ECD (Electro Chemical Deburring) machine:

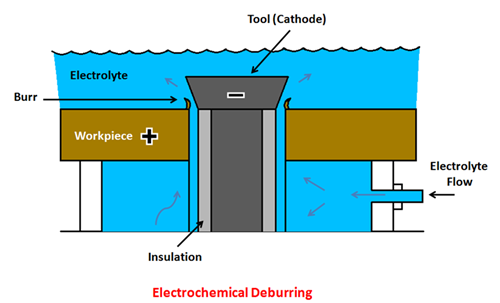

We have recently developed an ECD machine to tackle burrs in metal works. It removes those burrs away using electrochemical discharges. These machines are better at getting rid of burrs inside stuff like pump and valve bodies, connecting rods, crankshafts, especially in fields like auto, engineering, and oil pumps.
III. Advantages of (Electro Chemical Deburring):
1. It's ideal for getting rid of hard-to-reach internal burrs in metal work, where mechanical methods fall short.
2. It can create small rounded corners where holes or edges intersect.
3. It's safe for both the job's finish and the operator, thanks to the use of neutral inorganic salt: sodium nitrate as an electrolyte.
4. It's highly efficient at deburring, taking just 2 to 3 minutes to remove internal burrs.
5. It can handle deburring multiple metal jobs or different areas simultaneously.
IV. Specification
Model No. | ECD6032 | ECD60150 | ECD10050 |
Worktable size(mm) | 320*600 | Dia1500 | 500*1000 |
Spindle travel(mm) | 200 | 70 | 0 |
Output voltage(V) | DC 0-24V | DC 0-24V | DC 0-24V |
Max output current(A) | 300-2000 | 600 | 600-1500 |
Tank capacity(L) | 1500 | 1500 | 1500 |
V. Application areas:

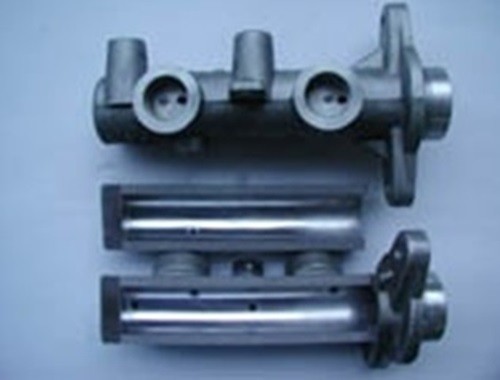

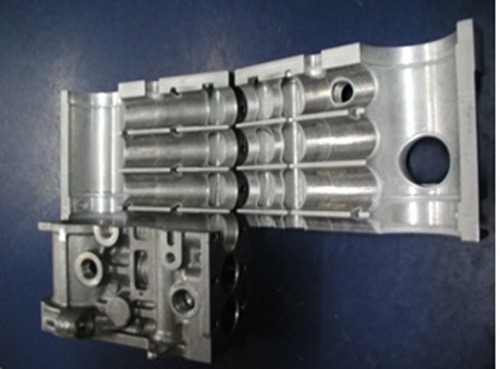

ECD (Electro Chemical Deburring) machines are used in Diesel cylinders, oil flushing Pumps, brake pump, spinning machine workpieces, and cavity type metal jobs, etc.
