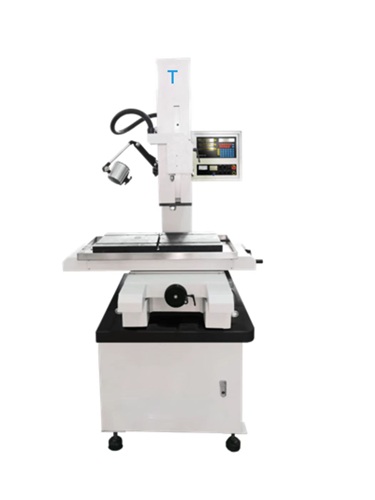

Larger Type Drill EDM Machine

Larger Type Drill EDM Machine

I．            The characteristics of the drill EDM machine:

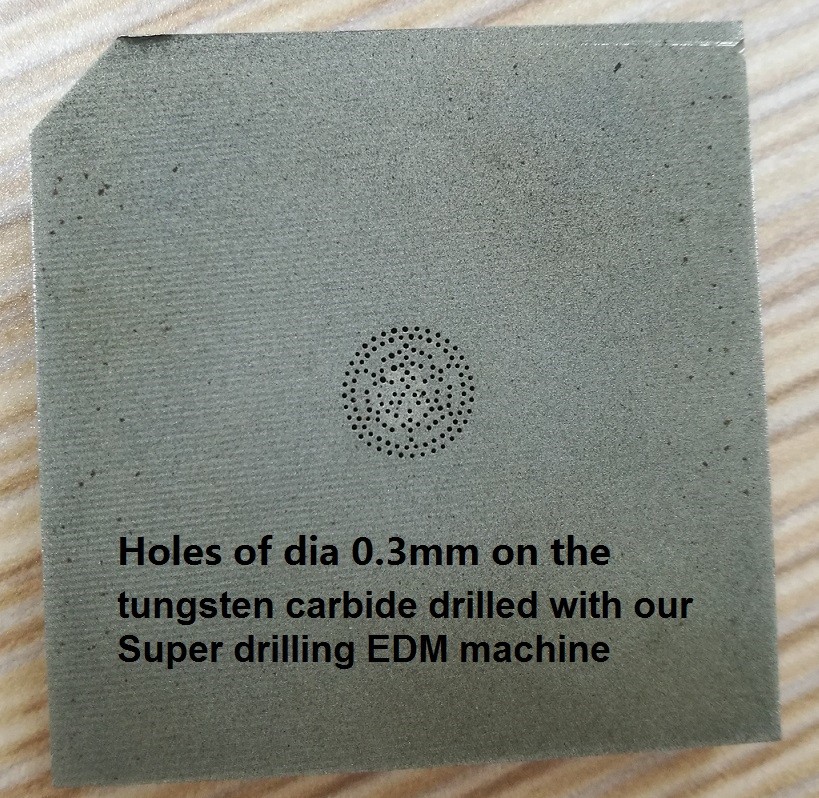

1. Drill the deep holes of diameter: 0.2-3.0mm rapidly

2. Servo motor drive Z axis move rapidly

3. Z axis mounts on linear guides for high precession

4. X, Y, Z axes adopt ball screw for moving with high stiffness

5. Special pump with high pressure for drilling from Taiwan

6. Auto depth control helps making blind holes easier

7. One touch one hole drilled, Z axis control(optional)

II．          Advantages of the Drill EDM machine

1.     Strong machine body

2.     Accuracy electrode guide

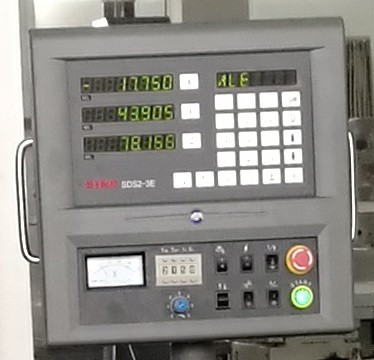

3.     Long usage life operation panel:

4.     High quality pump and filter

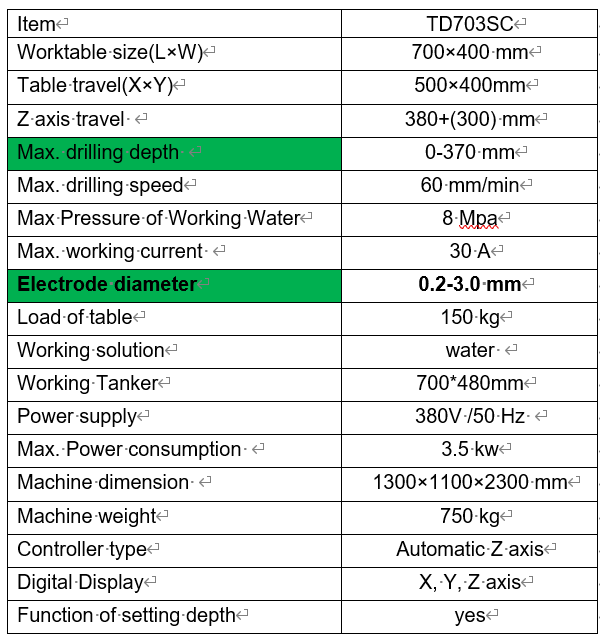

III．         Specification of Small hole Drill EDM machine
