EDM Sawing Machine EDS600

EDM Sawing machine is used for cutting any special hardened conductive material, such as ESR (electrode slag remelting) steel ingots, high-temperature heat-resistant alloys, high chromium, high nickel alloy, and titanium alloy, etc.

EMAIL

CNC EDM Sawing Machines (EDS)


I.             Benefits you can get with our CNC Electrical Discharge Sawing Machines (EDS)

1.    Improve your cutting efficiency greatly with EDS machines:

Our EDS machines cut the hardened alloys at speeds up to 2300 mm2/min, 2 times higher than the traditional band saw machine;

2.    Reduce your blade costs:

The price for the electrode (meld steel sheet) on our EDS machine is just 1.5USD/piece, a fraction of the USD500 saw blade;

3.    Cut material costs.

With our EDM saws, you’re shaving the cutting path down to 1.5-2.0mm from 3 mm, saving heaps of material over time.


II.            Features of Electrical Discharge Sawing Machine (EDS)

EDS machine can cut any special hardened conductive material, no matter how hard it is, such as ESR (electrode slag remelting) steel ingots, high-temperature heat-resistant alloys, high chromium, high nickel alloy, and titanium alloy, etc. Where traditional band saws struggle and wear down, our EDM saws excel.


     III.           Advantages of Electrical Discharge Sawing Machine (EDS)

1.    Super high cutting speed: Up to 2300mm2/min;

2.     Huge savings on saw blade: mild steel blade at just 1.5USD/piece;

3.    Leaner Cuts: Only 1.5-2mm in cutting path width.


IV.           Main specification

Parameters/ Model   No.

EDS350

EDS600

EDS1100

Max. cutting diameter (mm)

φ350

φ600

φ1100

Max. work piece width (mm)

810

1000

1100

Max. cutting travel (mm)

400

750

1200

Max. cutting length (mm)

Unlimited

Unlimited

500

Worktable (mm)

800x2000

1800x900

1200x2500

Worktable travel (mm)

800

Max cutting speed (mm2/min)

2300

Max. worktable load (Kg)

2500

3000

20000

Electrode size(L) (mm)

7420

9550

9550

Cutting gap(mm)

≤2

Electrode Material (mm)

Mild steel:   0.7~1.2 (T)x25-40(W)

Max. output current (A)

500

800

1000

Controller

German Siemens

Feeding motor

Panasonic AC servo   motor


V.               Pictures of EDM Sawing jobs:

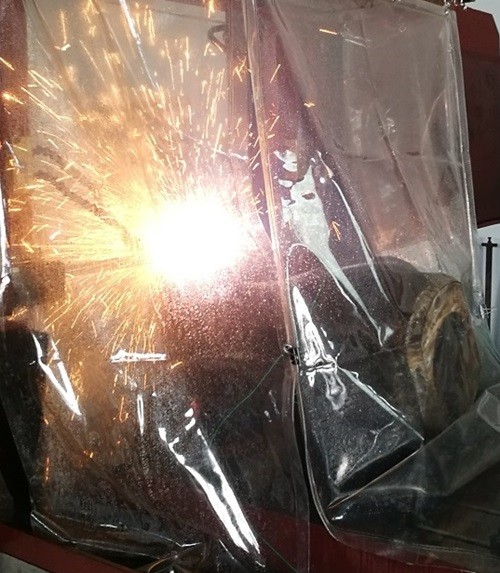

EDM sawing  job .jpg

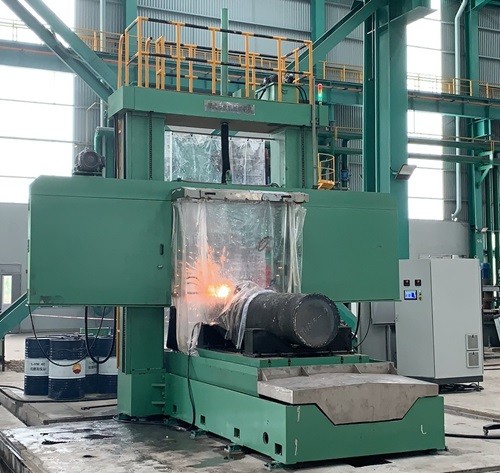

ESR Ingots cutting

EDM sawing  job .jpg

Mild Steel Sawing blade

EDS loaded in container .jpg

EDS machine in container for shipment
