CNC Drilling EDM Machines

CNC Drilling EDM Machines

I.             Benefits you can get with our Small Hole Drilling EDM Machine

1. Experience a significant boost in drilling speed.

Our top-notch EDM machine drills at a max speed of 120mm/min on mold steel.

2. Enhance your drilling precision.

Thanks to our use of a servo motor and linear guide way on the Z axis, as well as X/Y/Z axis ball screws.

3. Cut down on drilling tool expenses.

The cost of brass/copper tubes is far less than that of drilling bits.

II. Key Features of Our Small Hole Drilling EDM Machine

1. It drills all metal types with a smooth finish, including high-temperature heat-resistant alloys, high chromium, high nickel alloy, and titanium alloy.

2. No worries about drill bits breaking inside the workpiece.

3. It can drill holes ranging from 0.2mm to 3.0mm on any shape, whether it's a circle, ball surface, slant face, etc.

III. Advantages of Our Small Hole Drilling EDM Machine

1. Exceptionally high drilling speed: Max 120mm/min.

2. Superior drilling accuracy: (Z axis servo motor, linear guide way, and precision ball screw. Re-positioning accuracy: 0.006mm on TD404CNC).

       3. The cost of brass/copper tubes is more economical than drilling tools.

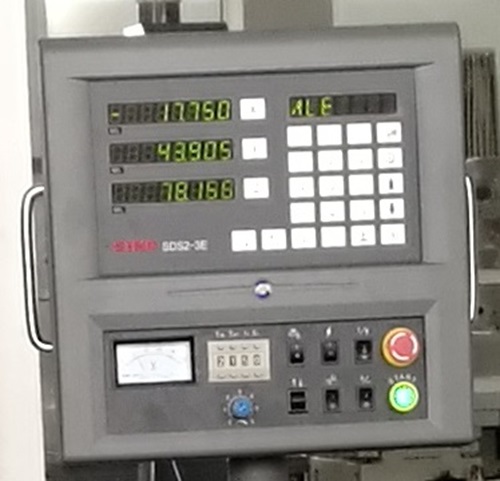

TD703AD Operation panel

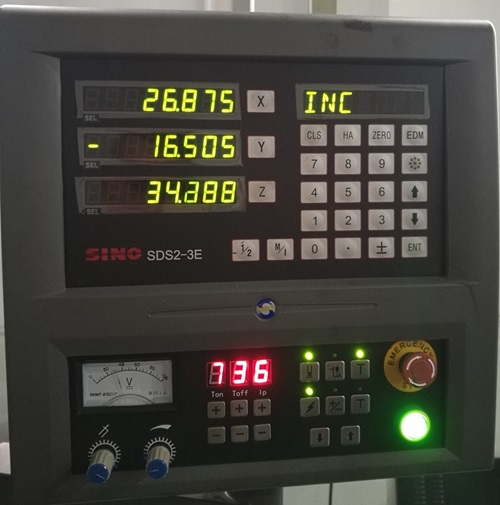

TD703A/SA Operation panel

IV.          Main specification

V.           Pictures of  Drill EDM Machine Jobs and clients visiting:

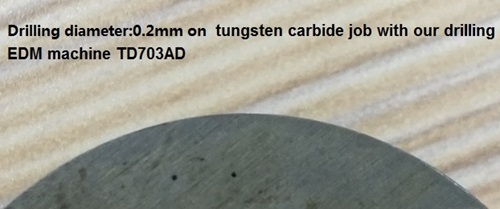

Dia 0.2mm sample

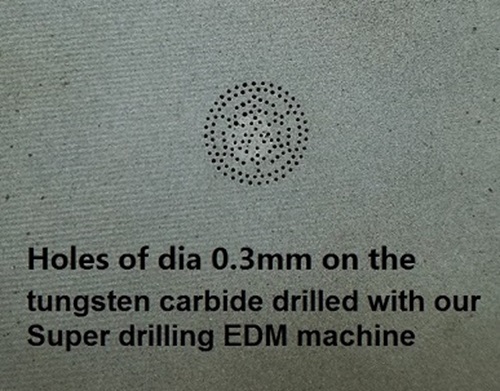

Dia 0.3mm holes

European Clients were visting our Drill EDM machines workshop
