CNC Milling & Engraving Machines are mainly used for the copper/aluminum/ electrodes milling and engraving with a good suface finishing.

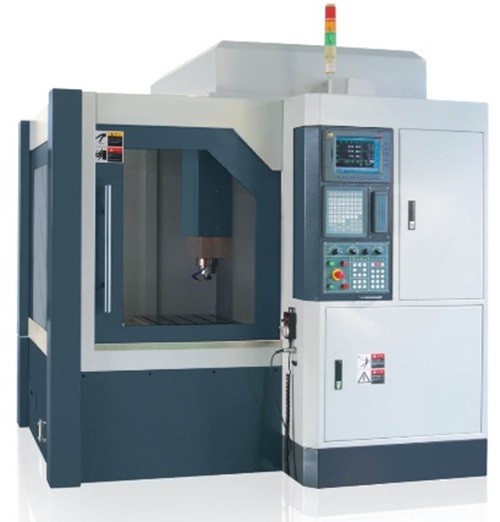

CNC Milling & Engraving Machines
I. Benefits you can get with our CNC Milling & Engraving Machines
1. Improve your surface quality with faster milling speeds.
2. Slash your machining costs by switching to our machines.
3. Operating our CNC Milling Engraving Machine is a breeze.
II. Advantages of CNC Milling& Engraving machines:
1. Achieve higher accuracy (3um/300mm).
2. Boost your efficiency, perfect for crafting copper/brass electrodes or steel molds.
3. Enjoy longer, uninterrupted runs for top-notch surfaces and lighter tasks.
III. Main Specification
Machine models | Unit | ME4045 | ME5050 | ME6060 | ME7080 | ME1080 | |
Travel | X Axis | mm | 450 | 500 | 600 | 750 | 800 |
Y Axis | mm | 400 | 500 | 600 | 800 | 1000 | |
Z Axis | mm | 200 | 250 | 250 | 300 | 300 | |
Table upper surface to spindle nose end face | mm | 30-230 | 60-310 | 60-310 | 60-360 | 60-360 | |

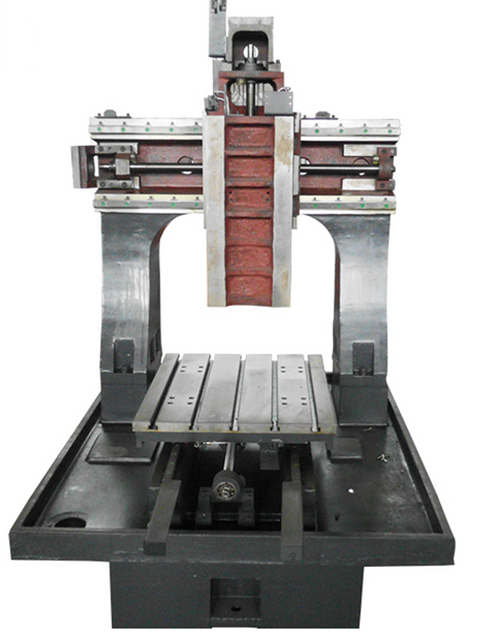

Gantry | Gantry Width | mm | 500 | 600 | 660 | 800 | 850 |
Ball screw type | * | 2505 | 3205 | 3205 | 3205 | 3205 | |
Linear guide way type | * | X/Y/Z: H25 | X/Y/Z: H25 | X/Y: H30;/Z:H25 | X/Y/Z: H30 | X/Y/Z: H30 | |
Accuracy | Positioning | um | ±5/300 | ±5/300 | ±5/300 | ±5/300 | ±5/300 |
Repeatability | um | ±3/300 | ±3/300 | ±3/300 | ±3/300 | ±3/300 | |
Table | Table dimension | mm | 400*400 | 550*500 | 650*550 | 800*700 | 1000*750 |
Max. load on table | Kg | 100 | 200 | 300 | 400 | 600 | |
T slot | mm | 5-14 | 5-14 | 5-14 | 5-14 | 5-18 | |
Spindle | Speed | rpm | 3000~24000 | 3000~24000 | 3000~24000/ 21000 | 3000~24000 /18000 | 3000~24000 /18000 |
Spindle Power | KW | 1.6/2.2 | 3.2 | 3.2/4 | 3.2/4 | 4/5.5/7.5 | |
Spindle Type | * | High speed electric spindle | |||||
ATC | In line type ATC | PCS | 8 | 8 | 8 | 8 | 8 |
Exchange time | Sec | 3 | 3 | 3 | 3 | 3 | |
Tools | Tools Dia. | mm | ¢3-¢12 | ¢3-¢12 | ¢3-¢12 | ¢3-¢12/¢16 | φ3-φ12/16-φ20 |
Feeding | Rapid speed(X/Y/Z) | mm/min | 8000 | 8000 | 8000 | 8000 | 8000 |
Package | Weight | Kg | 1000 | 2300 | 2500 | 3000 | 3500 |
Dimension | mm | 1400*1373* | 2068*2000* | 2370*2010* | 2280*2485* | 2750*2284* | |

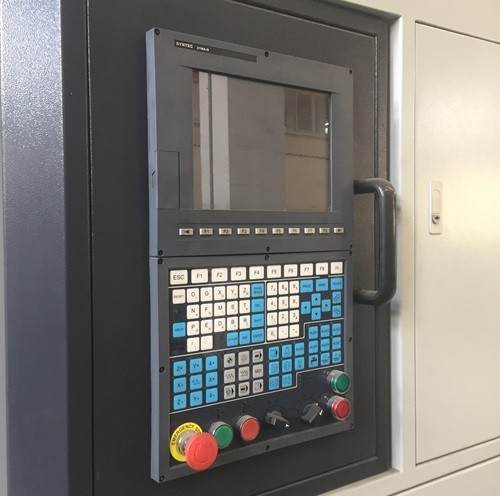

Controller | Taiwan Syntec / LNC(Baoyuan) (Fargo/Mitsubishi controller are optional) |

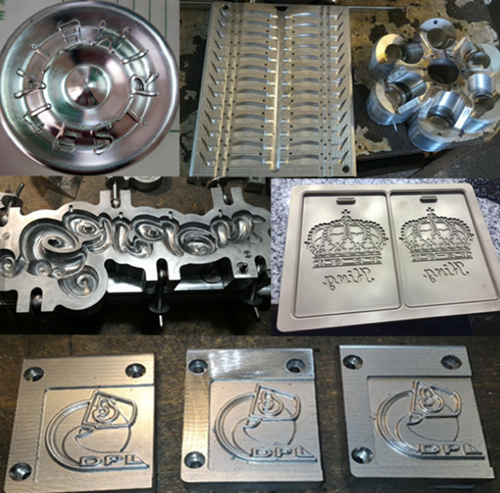

IV. Samples of the CNC Milling Engraving machine
