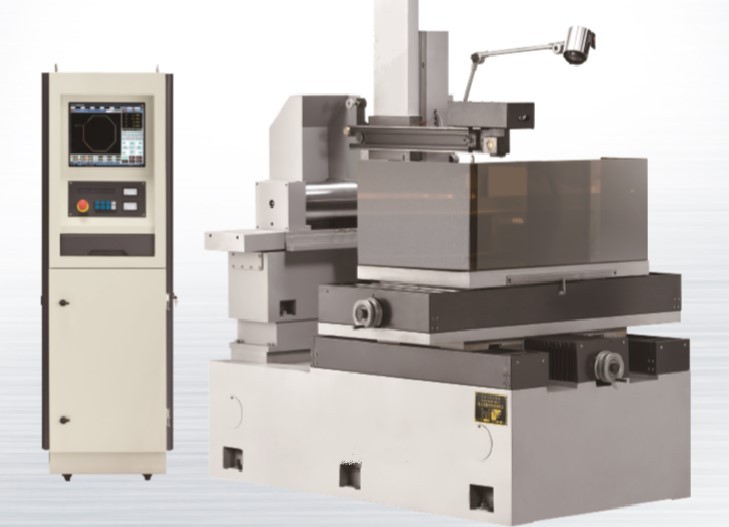

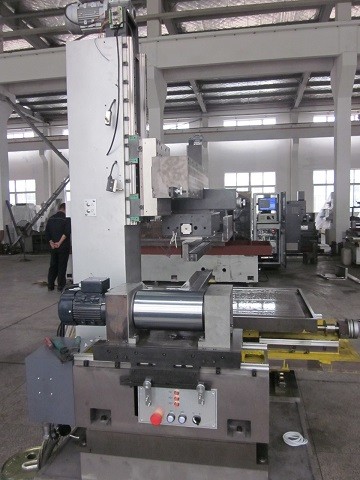

Small Models wire cut EDM machines

Travel/space

X/Y axis travel

mm

320*400

400*500

500*630

U/V axis travel

mm

A type: 20*20 / (B type: 220*220)

Table size

L*W

mm

410*690

490*790

570*920

Max workpiece thickness

H

mm

500

500

500

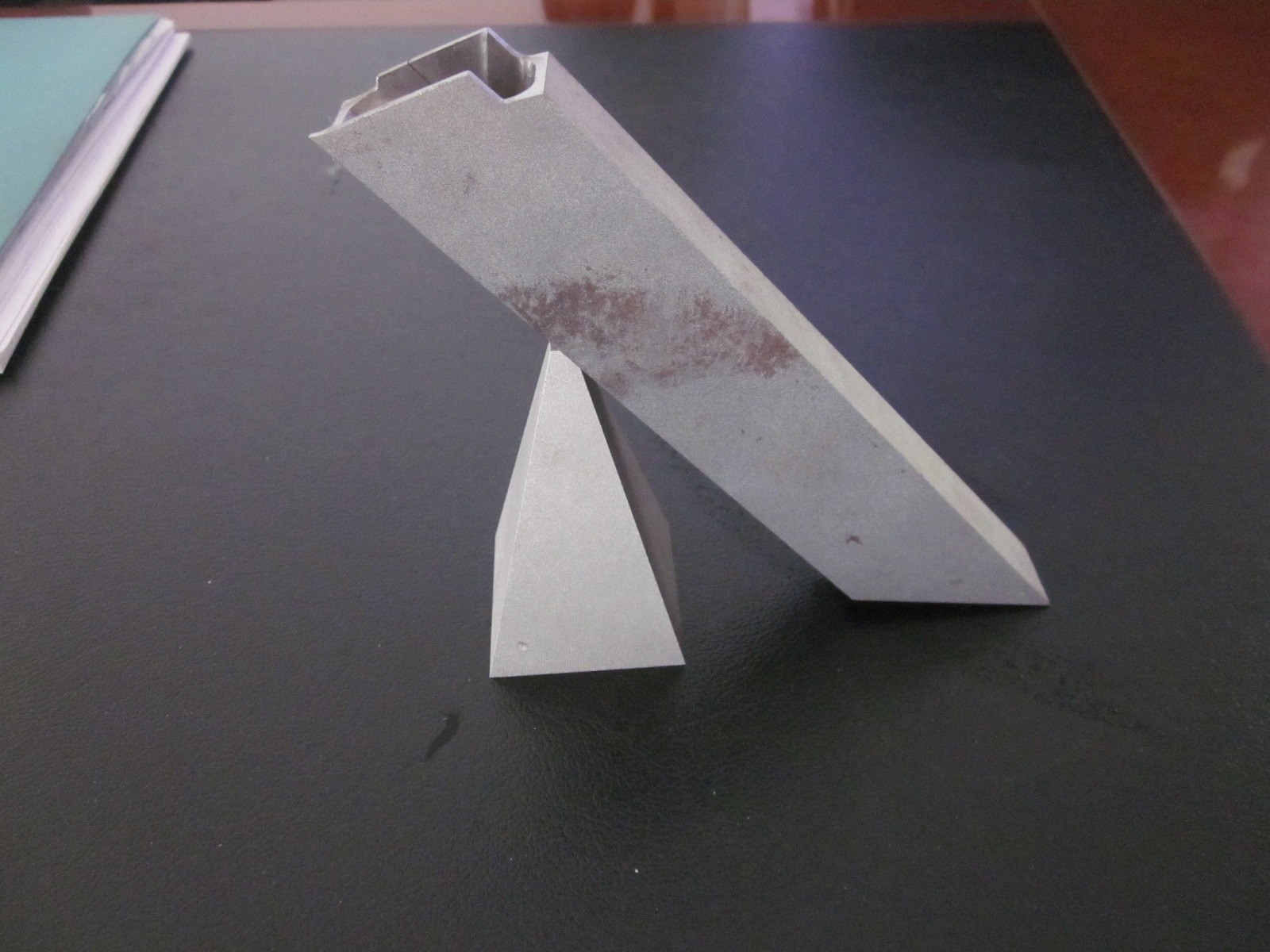

Taper angle

R

degree

A type: ±3°/ (B type: ±30°)

Roughness

Ra (Once cutting)

um

≤2.5

Ra (multi-cutting)

um

≤1.0

Precision

*

mm

≤0.01

Screw

*

pcs

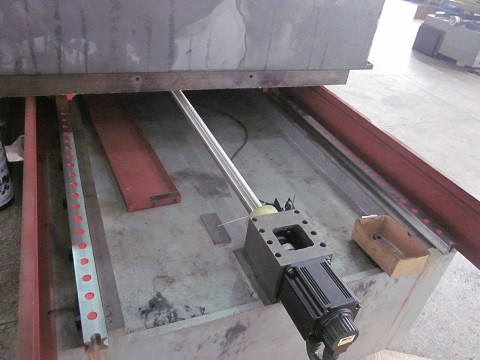

High precision ball screw

Guide way

*

pcs

Steel linear guideways

Weight

*

KG

1700

2000

2300

Motor

Stepping motor control (AC   servo motors are optional)

Machine dimension

L*W*H

mm

1700*1250*1750

1850*1400*1800

2000*1600*1800

  1. Lowest   running cost

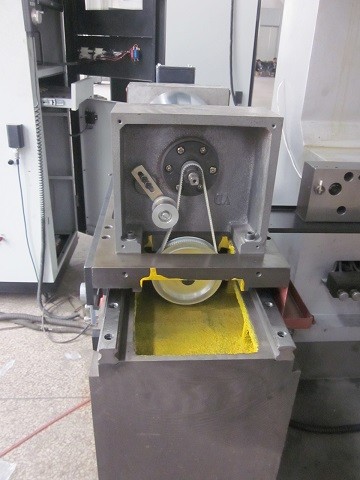

  2. Reusable   molybdenum wire

  3. Multiplicity   cutting function: better accuracy, better surface finishing

  4. DXF, AutoCAD   can be read. AutoCAD can be used directly, easier to operate

  5. Surface   finishing 1.5μ~2.5μ

  6. The casting   for the main machine bed is equipped with the high rigid HT250, which made by   a famous Japanese manufacturer. Integrated structure design, all casting   parts are made with the procedure of resin-send and twice heat treatment to   improve the max load weight and keep a good precision for long time and avoid   the distortion.

  7. New designed   three layer filter coolant system

  8. Industrial   computer: more stable, longer using life

III). CONTROL   SYSTEM Windows

The   controller equipped the auto cut Intelligent software, which integrates the   program and control and based on Windows. This new designed auto cut software   is the unique software for WEDM running on the condition of windows.

   (1)Coordinate   system: Absolute coordinate, incremental coordinate (relative coordinate)

   (2) Functions   of coordinate transforming, zooming in and zooming out, rotating and tracking   display in real time

   (3)Functions   of interpolation of straight line and circular arc

   (4)Function of   taper processing: As above

   (5)Function of   processing different top and bottom abnormities parts

   (6)Auto-handle   for short circuit and wire-break

   (7)Functions   of memorizing: unexpected power off, it can continue the processing   automatically; auto-stop after processing

   (8)Functions   of auto edge-touching position and auto center finding

   (9)Function of   auto-adding transitional arc (Arbitrary angle)

   (10) Functions   of menu technology and auto-programming ward

   (11)Functions   of menu technology and auto-programming

   (12)AUTOCAD   can be used to program directly in the software.

 2. Using the PCI   slot controller card, LCD Monitor and the High-tech Industrial computer. That   greatly enhances the stability of control and greatly reduces the computer   the failure rate.

 3. Embedded   Control system can be connected with many design software smoothly.

 4. Variety of   pulse power can be chosen, which is suited for a number of processing   conditions to improve the cutting ability of the high precision parts.

 5. With a large   database storage capacity, user can choose the suitable parameter according   to deferent working conditions. Users can adjust machining parameters to   establish a database at any time according to their own experience

IV). CNC system configuration and technical   performances

 (1) CNC Hardware   configuration:
           (A) Industrial Computer:P4 or   above
           (B)EMS memory: 1G
           (C)Fixed Disk: 160G
           (D)USB and Internet
           (E) 15″liquid crystal display   (LCD)
           (F) RS232 and Keyboard and   mouse

(2) CNC software and operation platform:
           (A) CNC Auto-program and   control function
           (B) operation platform:   Windows

(3)CNC technical function:
           (A) 4 axis processing
           (B)Function of processing   different top and bottom abnormities parts

(4)Running environment
           (A) Temperature: 5-40 degree
           (B) Relative humidity：40%～80%.
